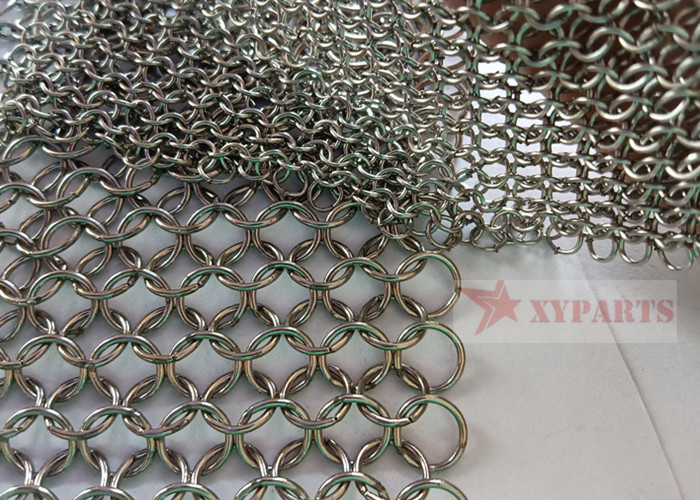

Welded Or Non-Welded Stainless Steel Round Ring Mesh For Decoration And Security
Quick Detail Of Stainless Steel Round Ring Mesh :
| Product:stainless steel round ring mesh Material:stainless steel ,copper ,brass ,bronze ,ect
Wire diameter:0.5mm-3mm
Ring outside diameter:3.81mm-30mm
Color:silver color ,gold color ,copper color ,brass color ect |  |
Stainless Steel Round Ring Mesh Specification :
Welded Type :
*****************************************************
| Term | Type | Material | Wire diameter | Outer diameter | Weight/m2 |
| XY-SS-053 | Weld | stainless steel | 0.53mm | 3.81mm | 3.2kgs |
| XY-SS-080 | Weld | stainless steel | 0.80mm | 7.00mm | 2.8kgs |
| XY-SS-150 | Weld | stainless steel | 1.50mm | 15.00mm | 4.8kgs |
| XY-CS-150 | Weld | Copper/brass | 1.50mm | 15.00mm | 5.5kgs |
| XY-SS-200 | Weld | stainless steel | 2.0mm | 20.00mm | 6.8kgs |
| XY-CS-200 | Weld | Copper/brass | 2.0mm | 20.00mm | 7.8kgs |
Non-Welded Type :
******************************************************
| Term | Type | Material | Wire diameter | Outer diameter | Weight/m2 |
| XY-SS-100 | Non-welding | Stainless steel | 1.0mm | 8.00mm | 4.7kgs |
| XY-MS-100 | Non-welding | Mild steel | 1.0mm | 8.00mm | 4.6kgs |
| XY-SS-120 | Non-welding | Stainless steel | 1.2mm | 10mm | 4.8kgs |
| XY-CS-120 | Non-welding | Mild steel | 1.2mm | 10mm | 5.5kgs |
| XY-SS-150 | Non-welding | Stainless steel | 1.5mm | 15mm | 4.8kgs |
| XY-CO-150 | Non-welding | Mild steel | 1.5mm | 15mm | 5.5kgs |
| XY-SS-200 | Non-welding | Stainless steel | 2.0mm | 20mm | 6.8kgs |
| XY-CO-200 | Non-welding | Mild steel | 2.0mm | 20mm | 7.8kgs |
Stainless Steel Round Ring Mesh Type:
 | Welded ring mesh is mainly suit for anti-cut gloves and anti-cut cloth and caps. some specifical material ring is used in the military field, with bulletproof and shielding functions. sometimes also used for decoration ,for example ,metal curtain water wall ,due to the welded type ,it is not easy to break ,so it is also used as chain mail scrubber |
| Non- welded ring mesh is used ceiling drapery, window curtain and room dividers, because no welded ring mesh is cheaper than welded ring mesh, but it is enough strong for drapery, Not easy to break, easy to make a variety of different shapes |  |
Additional Properties of Round Ring Mesh :
Permanent: Despite initial cost, Metal Mesh Drapes, unique maintenance and longevity properties
prove it more economical over the life of the installation.
Maintenance Free: Metal Mesh Drapes tend to shed dust. An occasional brushing or dusting will
suffice. Stains wash off with mild soap and water.
Fireproof: Its melting point is that of the base metal.
Air Conductive: While effectively concealing heat and air conditioning outlet, Metal Mesh Drapes
permit the relatively free circulation of warm and cool air currents.
Stable: Metal Mesh Drapes neither shrinks nor stretches in use.
Malleable: Metal Mesh Drapes can be hung in strips, panels or joined to create a metal fabric with
superb draping characteristics.
Mildewproof: It is unaffected by dampness and humidity.
Sunrot-proof: It is impervious to even intense tropical sunlight.
Light Diffusing: Metal Mesh Drapes have exceptional light filtration properties. The degree of light
control is conditioned by fullness and prevailing light conditions.
APPLICATIONS of Metal Ring Chain Partition, Copper Plated Ring Mesh Curtain
XiangYi Company Advantages:
1.pattern design support according to the application
2.frame design support according to the installation
3.surface treatment support ,inclode to the installation
4.supply install accessories ,include PVDF,PVD Spraying
5.Material:stainless steel ,copper ,bronze ,brass ,aluminum ,aluminum alloy ,ect
6.Weave type :Plain weave,twill weave ,dutch weave ,plain dutch weave ,twill weave ,uinque woven method,ect
7.ISO9001-2008 Quality certification management system
