Shooting Nail Pre Mounted Plastic Insulation Washer 35 Mm

Name: Shooting Nail Pre Mounted Plastic Insulation Washer 35 Mm
Brand: HUIHAOCUSTOM
Price: 1 USD

Quality Shooting Nail Pre Mounted Plastic Insulation Washer 35 Mm wholesale

Brand Name : HUIHAOCUSTOM

Model Number : 35mm insulation washer

Certification : ISO9001-2015

Place of Origin : China

MOQ : 10000 pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10000 pcs oer hour

Delivery Time : 10 work days

Packaging Details : 500 PCS per carton, 45 carton per pallet for Shooting Nail Pre Mounted Plastic Insulation Washer

Name : 35mm plastic Insulation Washer

Material sources : plastic

Color : White,Blue,Gray

Application : brick wall,Concrete Wall

washer Size : 35mm

Sample : Provide,free

dirve pin : 3.7mm / .145''

fixed tools : PT-27.27 Cal General Purpose Powder-Actuated Tool

Contact Now

Shooting Nail Pre Mounted Plastic Insulation Washer 35 Mm

Plastic insulation washer with pre-mounted nail, for attaching waterproofing membrane to concrete or masonry.

Application: Membranes and drainage plates, Nets, fabric and similar, Plastic corrugated sheets, Insulation up to 30 mm thick
For use with (tools): DX 2, DX 351 M/E, DX 36, DX 460 F8, DX 5 F8, DX 6 F8, DX E72
Corrosion protection: Galvanized zinc coated <20 µm

Description of Plastic Insulation Washer 35 Mm

The PRE-Mounted plastic insulation washer is a powder-actuated washered pin designed to fasten rigid insulation board to building structures. The PRE-Mounted plastic insulation washer consists of a 0.300"-headed fastener with a pre-mounted 1-3/8" flat plastic washer. The plastic insulation washer pin is for high-volume applications and is designed for fastening into concrete and steel.

Key Features of Plastic Insulation Washer 35 Mm

Pre-mounted 1-3/8" flat plastic insulation washer
The minimum effective shank length must equal or exceed the combined thickness of the attached material and the minimum embedment depth
Code-listed per ICC-ES ESR-2138
Designed for use with powder-actuated tools and compatible with many competitive tools
Adequate bearing surface for superior clamping of thin membranes
Helps to prevent tearing or ripping of thin or soft membranes
Flexible, soft plasticinsulation washer conforms to uneven surfaces
35 mm soft plastic insulation washer – suitable for fastening fabric waterproofing membranes to concrete surfac

Specification details of Plastic Insulation Washer 35 Mm

Material	Washer size	Pins Size	Board thickness	Packing methods
Galvanized steel pins +Plastic washers	35mm	1'' (25mm)	11-15mm	500 pcs per carton
Galvanized steel pins +Plastic washers	35mm	1 1/4''(32mm)	15-20mm	500 pcs per carton
Galvanized steel pins +Plastic washers	35mm	1 1/2''(38mm)	25-30mm	500 pcs per carton
Galvanized steel pins +Plastic washers	35mm	2 1/2''(63.5mm)	50-60mm	500 pcs per carton
Note	plastic insulation Washer size and pins size could be customized for large order

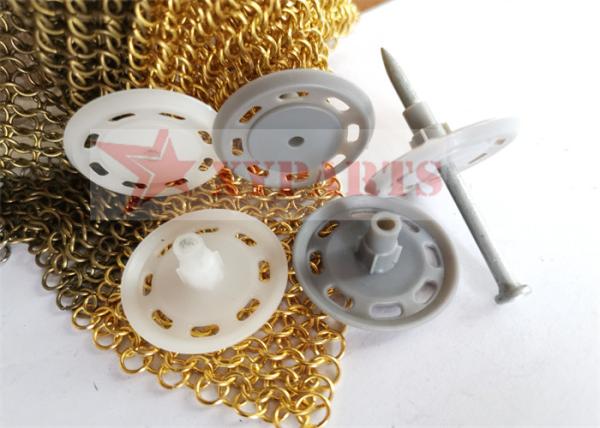

Image details of the Plastic Insulation Washer 35 Mm

Shooting Nail Pre Mounted Plastic Insulation Washer 35 Mm

Applications of Plastic Insulation Washer 35 Mm

Wood / Residential Construction
Fastening to Structural Steel
Direct Fastening
Cold-Formed Steel
Drywall Track
Mechanical / Electrical / Plumbing
Concrete
Ceiling-Wire Fastening
